2017 proved to be an explosive year for 100G, as well as for other "high-speed" networking technologies ("high-speed" being anything 25G+). According to Crehan Research, the data center Ethernet switching market saw its strongest growth in five years during 2017.


100G Networking Trends

In this report, Crehan notes that,

"Customer adoption of 25Gbe and 100GbE data center switches was exceptionally strong...with these two networking technologies driving the quarter's stellar revenue growth."

This statement is not only valid, but can even be considered conservative; 100G adoption rates have been on a steep upward climb from the beginning of 2016 through 2017.

100G Adoption Rates 2016-2017.png

This "steep climb" shows that 100G port shipments have risen from under 25,000 ports shipped in 1Q2016 up to 375,000 ports shipped in 2Q2017 - a very impressive increase (15x!). With 2017 drawing to a close, it is clear that speculation is no longer part of the equation; 100G adoption rates are on the rise, without any sign of slowing down.

Learn More In-Depth About The 100G Network Monitoring Solution

The Dilemma: The 100G Blindspot

There are many reasons the market is experiencing an increase in the adoption of high-speed networking technologies:

  • Major cloud providers are upgrading their core speeds to handle ever-increasing customer numbers, driving demand and reducing overall price points
  • FANG (Facebook, Amazon, Netflix, and Google) and other tech behemoths continue to aggressively pursue 100G "roll your own" solutions and set the pace for the broader market
  • Hardware and software continue to separate, allowing for lower cost solutions to enter the market (including 100G offerings)
  • Declining prices for 100G transceivers

Be it 25, 40, 50, or 100G, high-speed networking technologies are undoubtedly on the rise, with powerful drivers pushing for their wide-spread adoption. However, there is one particular networking technology that is not keeping up with the pace of production networks: network monitoring solutions (often referred to as network visibility solutions.)

Even though production networks are experiencing explosive adoption rates for high-speed routing and switching solutions, the same cannot be said for network visibility. The main reason for this is that high-speed offerings all share one thing in common: they are extremely complicated and expensive to monitor. The sheer volume and speed of packets traversing the networks overwhelm most of the monitoring tools available today - originally designed to ingest 1G traffic... 10G at best.

To make a tough problem harder, the vendors providing these monitoring tools have not embraced higher-speed offerings. We still find ourselves in a network monitoring world where the ingest rates for most monitoring tools hit the ceiling at 10G line-rate.

This just isn't going to cut it.

Inspecting and monitoring traffic on high-speed networks is a non-trivial task. The biggest challenge is reconciling the difference between production network speeds and the ingest rates of tools designed to monitor them. Unfortunately, ingest rates are not the only obstacle to monitoring these networks...

High-speed network traffic tends to come with extra baggage: multiple MPLS headers, packets with overlays/underlays/everything in-between, mal-formed packets, large volumes of PITA (Pain In The Ass) packets, etc. Due to these unique characteristics of high-speed networking, network professionals find themselves facing a critical need for a solution that can:

  1. Provide 100% visibility into 100G traffic using lower-speed tools
  2. Handle the complex traffic types found in high-speed networks

The Answer: Enter the 100G Frame Processor

Frame Processors, often referred to as "Next-Generation Packet Brokers" help network engineers bridge the gap between high-speed networks and lower speed 10G network analyzers. Frame Processors provide the visibility and intelligence required for improving the stability, performance, and security of networks. With the Frame Processors, operations and security teams have end-to-end visibility, as well as access and the ability to groom, trim, optimize, and manipulate traffic from test or production network.

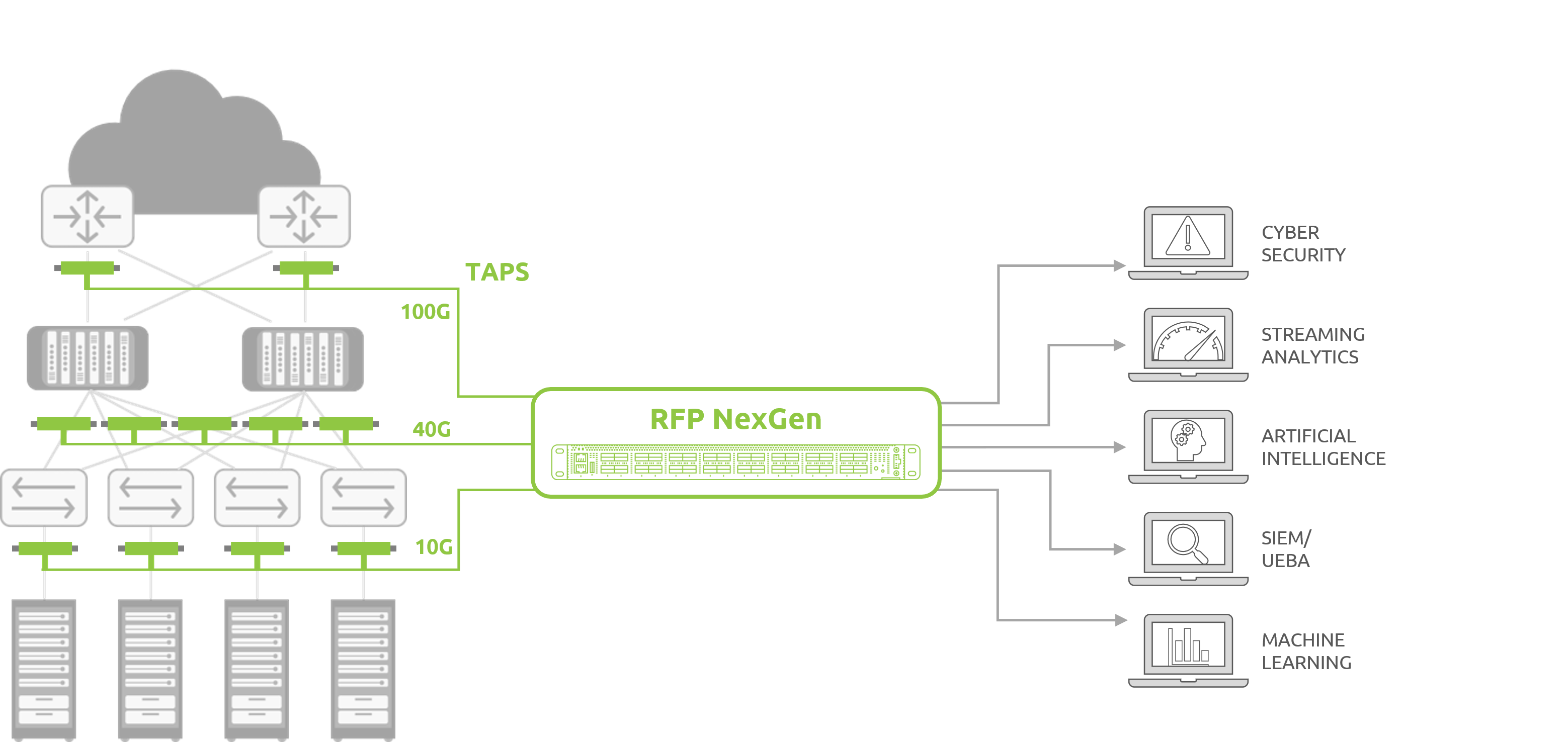

Frame Processors come in a variety of form factors and leverage flexible "network interface" options for high-speed networks. For example, our (MantisNet's) flagship Frame Processor, the Reconfigurable Frame Processor Next Generation (RFP-NG) is a (32) port, QSFP28 based 1U appliance that is capable of monitoring 10/25/40/50/100G links at line-rate. The device can ingest multiple high-speed network links and load-balance the traffic across the multiple 10G ports (for FULL-Fidelity visibility monitoring.) The RFP-NG can also apply line-rate filters on 100G traffic to skinny down the total volume and egress only the traffic of interest out of a single 10G port (for TARGETED visibility monitoring.)

Frame Processor Use Cases

*The RFP-NG supports the following use cases:

  • Traffic Shaping, Traffic Engineering, Load Balancing
  • Line-Rate (L2/L3/L4) Filtering, Quarantine, Isolation
  • Tool Chaining, Equipment Sharing Operational Troubleshooting
  • Advanced Network Performance Management and Monitoring via In-Band and Out-of-Band Network Telemetry (INT & ONT)

Very few solutions can help network professionals monitor and manage 100G traffic at line-rate AND filter ANY TYPE OF PACKET found within a 100G network.

As previously mentioned, the most difficult monitoring and diagnostic challenges typically involve complex protocol overlays, underlays, and (highly) encapsulated or malformed packets that are very typical in high-speed networks. Conversely, many network monitoring solutions that rely on traditional silicon (i.e., FPGAs, NPUs, or general purpose CPUs) cannot parse and filter these packet types at wire-speed. The technology simply cannot keep up.

That is why MantisNet offers 100G Frame Processor, built around a fully programmable systems architecture and silicon; technology that is optimized for the extreme abstraction of both the control and data planes, resulting in the ability to identify, monitor, and filter ANY TYPE OF PACKET found within a network (including 100G.) Guaranteed
